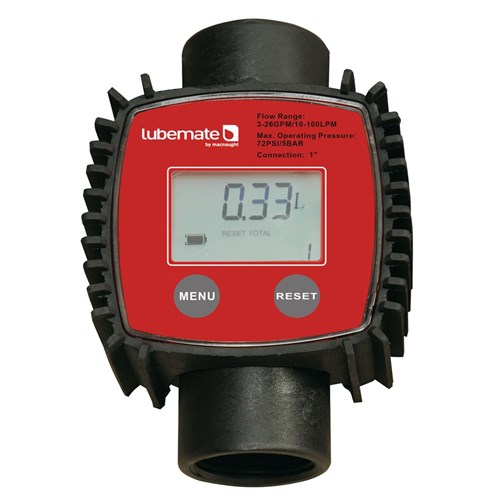

DIGITAL DIESEL METER
Description
Take the guess work out of diesel transfer with a digital meter. Featuring a turbine mechanism, these meters are ideal for gravity feed and in line applications. Easy to read display provides flow rate, resettable volume and a non-resettable totalizer.
Technical Specifications
Flow range: 10-100LPM
Suitable for diesel and kerosene
Inlet/Outlet: 1″BSP(F)
Maximum operating pressure: 72psi (5bar)
5-digit resettable totalizer
7-digit non-resettable totalizer
Field calibratable
IP55 protection
No spare parts available
Related products
-
MECHANICAL FUEL METER
Read moreDescription
Oval gear mechanical fuel meter. Flow rate 3 – 80 L/min. Accurate reading to +/-1 %. Operating pressure up to 345 kPa (50 psi). Resettable totalizer 999.9 liters. Suitable for diesel, kerosene, petrol and oils. Best choice for gravity feed tanks and unit has 1″ BSP(F) ports.Technical Specifications
Flow range between 3 – 80L/min
Operating pressure up to 345 kPa (50 psi)
Accuracy around +/- 1.0% of reading
Fitted with 1″ BSP(F) inlet/outlet
Mechanical display with push-button reset batch total -
MECHANICAL DIESEL METER
Read moreDescription
Mechanical display diesel meter that would be suitable with either manual or electric fuel pumps.Technical Specifications
Flow range: 20 – 120LPM
Nutating disc
Inlet/Outlet: 1” BSP
Maximum operating pressure: 49psi (3.5bar)
4-digit resettable totalizer
8-digit non-resettable totalizer
Register can be rotated
No spare parts available -
MECHANICAL DIESEL METER
Read moreDescription
Ideal for remote field and in-line use, these Macnaught MECHANICAL FUEL METERS provide reliable and accurate measurement of liquid without the need for power or batteries. Macnaught now offers two mechanical fuel meter options designed to suit most application requirements.Technical Specifications
Flow range 20 – 120LPM
Suitable for diesel, kerosene and light oils
Inlet/Outlet – 1” BSP (F)
Nutating disc
Maximum working pressure 50psi (3.5bar)
4-digit resettable total
Register can be rotated (180 degrees)
Field calibration capability
Calibration screw for easy field calibration
