Description

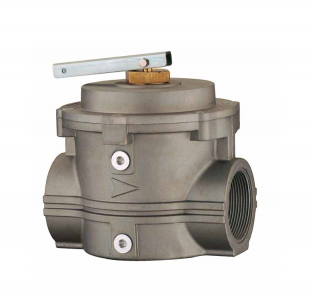

The Jerk Handle Valves are manually operated valves that allow the passage inside the piping while minimizing the pressure losses. With the possibility of remote interception operation; the closing operation is faster and safer than traditional ball valves.
- Standard Specification:
- Pmax 6 bar / available version 10 bar
- Inlet connection Threaded gas ½”, ¾” and 1” – ISO 228
- Closing time <1 second
- Use Non – Aggressive gases – Family 1-2-3 and air
- Working Temperature – 15 °C / + 70 °C
- Approval PED
- Protection degree IP65
- Materials:
- Body Die – Cast Aluminium Gd-AlSi12Cu -EN AB 46100
- Seals NBR
- Handle Staineless steel
- Internal componentes Aluminim and brass
