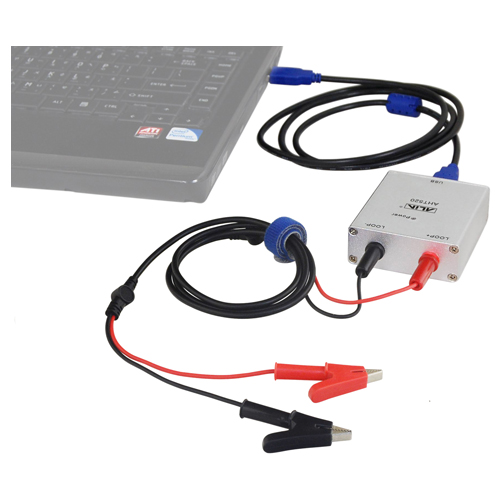

PC Based Hart Communication Modem AHT 520 Series
Description
The AHT520 Series HART communicator is a PC communication link to HART networks for commissioning, servicing, calibrating, or acquiring data from any HART instrument or transmitter.
AHT520 is a friendly user interface that enables you to set and check instrument parameters such as tag numbers and ranges, outputs, and view data.
Compatible with HART products from multiple manufacturers
No external power supply required, USB powered from notebook / PC
Compact size 2.9″ * 2.5″ * 0.85″ (73 * 64 * 22mm)
Rugged Aluminum Alloy enclosure
Polarity insensitive so you may attach either one of the test clips to positive or negative poles
Standard USB port
USB 1.1 and 2.0 compatible
Hart communicator programming software included
